Chauvin Arnoux CA6470N TERCA 3

Earth Resistance Tester

4 in 1 tester: earth resistance and coupling, continuity and resistivity.

Chauvin Part No: P01126506

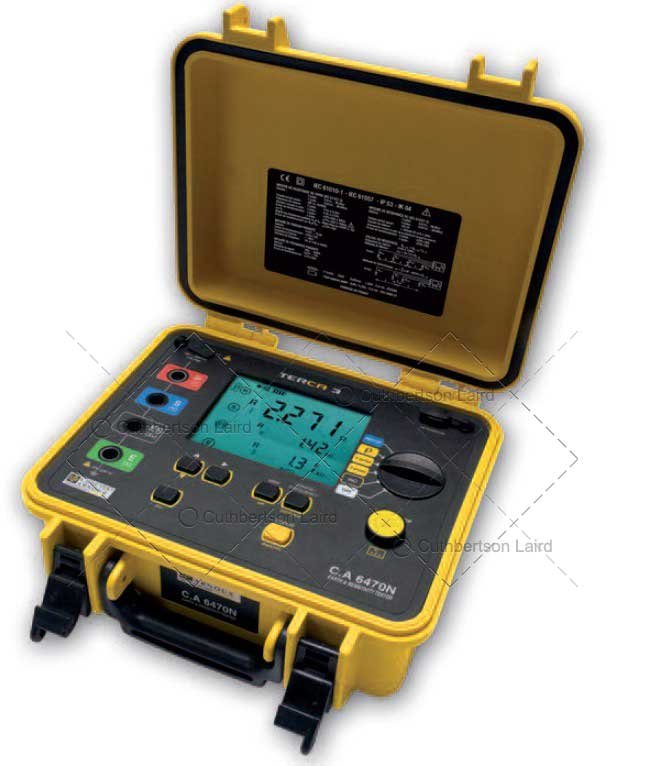

Ergonomic, comprehensive and accurate, the C.A 6470N offers direct access to all the measurements on the front panel by means of a rotary switch.

Compact and designed for use in the field, the C.A 6470N is rugged and leakproof. To simplify the connections, the 4 terminals for connection to the stakes are colour-coded. The C.A 6470N includes a large backlit LCD screen and a rechargeable battery with an external charger for connection to the mains supply or to a vehicle cigarette lighter.

Chauvin Arnoux CA6470N TERCA 3 Features

  • 3-pole and 4-pole measurements.
  • Resistivity (Wenner + Schlumberger methods).
  • Earth coupling.
  • Continuity & resistance.
  • Range: 0.01Ω to 99.9 kΩ (3P), 0.001Ω to 99.99 kΩ (4P).
  • Colour-coded connection terminals to prevent errors.
  • Giant backlit LCD screen.
  • Memory: 512 memory locations.
  • Communication: optical / USB link.
  • Rugged leak-proof and site-proof box.
  • Dimensions: 272 x 250 x 128mm.
  • Weight: 3Kg.
  • Chauvin Arnoux CA6470N Warranty: 1 year.

Included Accessories:

1 external mains charger, data export software + optical / USB communication lead, 5 operating manuals (one per language) on CD-ROM, 5 simplified operating manuals, each in a different language, 5 descriptive labels, each in a different language.
