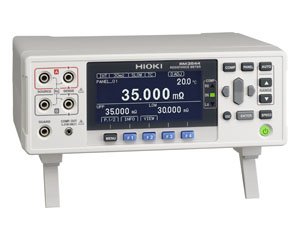

Hioki Resistance Meter RM3544 Series

Wide Range 30 mΩ to 3 MΩ DC Resistance Testers with Temperature Correction for High Speed Testing on Production Lines

Hioki DC resistance testers measure a broad range of resistance values at a high level of precision. The RM3544 series are easy-to-use resistance testers suitable for use on either manual or automated production lines for measuring the winding resistance of motors and transformers as well as the contact resistance of power relays, switches, and connectors.

RM3544: Basic model
RM3544-01: Select from RS-232C, Printer (RS-232C), or USB interface

Basic accuracy: 0.02%, Max. resolution: 1 μΩ, Max. measurable current: 300 mA
• Measure from 0.000 mΩ (@ 300 mA) to 3.5 MΩ
• Probe for guard jack use and increased measurement current yield an instrument that’s more resistant to noise
• Optional LED COMPARATOR ATTACHMENT and high-volume judgment tones combine to ensure PASS/FAIL judgments are communicated reliably in the noisy environment of the production floor
• EXT I/O interface with NPN/PNP support can accommodate a variety of automated production lines (-01 model)

Basic specifications (Accuracy guaranteed for 1 year)

Resistance range 30 mΩ (35.000 mΩ display Max., 1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display Max., 100 Ω resolution), 9 steps
Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s.
Testing current [at 30 mΩ range] 300 mA DC to [at 3 MΩ range] 500 nA DC
Open-terminal voltage 5.5 V DC max.
Temperature measurement -10.0 to 99.9°C, accuracy: ±0.50°C (Temperature Sensor Z2001 and RM3544/RM35440-01 combined accuracy)
Measurement speed FAST (50Hz: 21ms, 60Hz: 18ms) / MED (101ms) / SLOW (401ms)
Display refresh rate N/A
Functions Temperature correction, comparator (ABS/REF%), key-lock (OFF, menu lock, all lock), display digit count selection function (5 digits/ 4 digits), automatic power supply frequency settings (AUTO/50Hz/60Hz), scaling, judgment sound setting, auto hold, averaging, panel store/panel load
Memory storage N/A
Communication interfaces [Only RM3544-01] Select from RS-232C, Printer (RS-232C), or USB
Remote function, communications monitor function, data output function
Power supply 100 to 240 V AC, 50/60 Hz, Rated power consumption: 15 VA
Dimensions and mass 215 mm (8.46 in) W × 80 mm (3.15 in) H × 166 mm (6.54 in) D mm
[RM3544] 0.9 kg (31.7 oz), [RM3544-01] 1.0 kg (35.3 oz)
Accessories [RM3544] Power cord × 1, Clip Type Lead L2101 × 1, Instruction manual × 1, Spare fuse × 1
[RM3544-01] Power cord × 1, Clip Type Lead L2101 × 1, Male EXT I/O connector × 1, Instruction manual × 1, Application disc × 1, USB cable (A-to-B type) × 1, Spare fuse × 1
