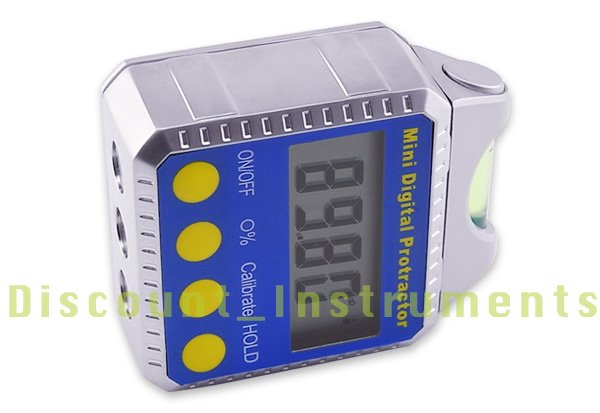

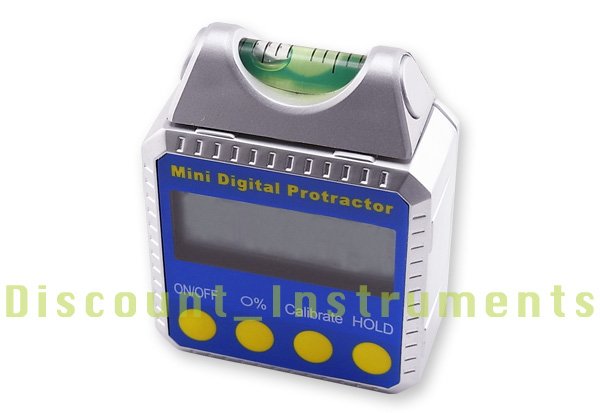

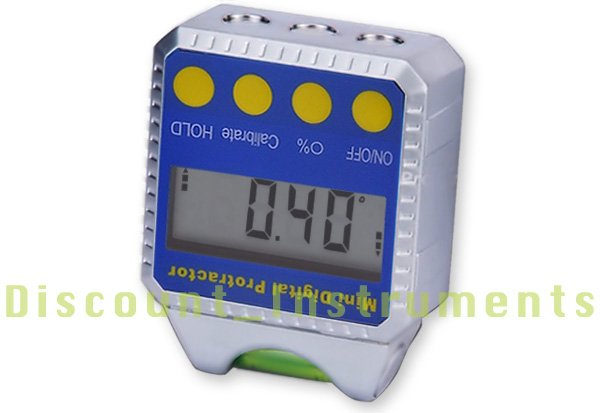

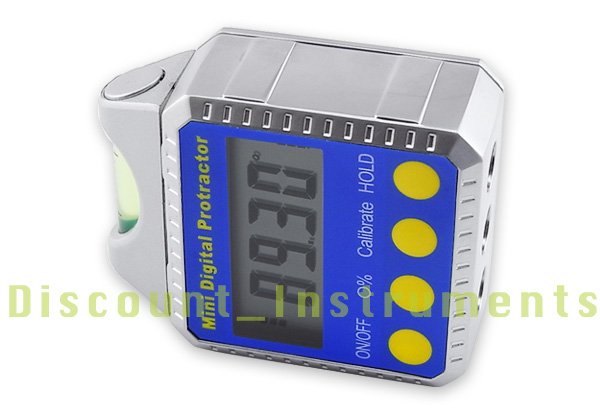

CIA029 DIGITAL INCLINOMETER ANGLE METER GAUGE SPIRIT LEVEL (BLUE)


Digital Bevel Box / Inclinometer / Protractor
with Spirit Level
Built-in Magnetic Base & Always Upright LCD



A revolutionary  inclinometer providesangle measurement within ±180° (0 ~ 360°) range inwide variety of application. Featuring the large and clearLCD with results always  in upright position atany given angle and the built-in Spirit Level sothat it can indicate whether a surface is plumb or level.The state-of-the-art sensor and microprocessor  circuitprovides unsurpassed accuracy throughout the protractor's360° range. In addition, placing the meter on a referencesurface zero will give a result of the measuredangle within 0.1° accuracy. The built-in strongmagnets on the base enables it to be fixed securelyon to any magnetic surface for easy and fast bevel anglesetting. Works great with miter and tablesaws.



Applications



  • Platform monitoring
  • Drainage angles and run-off slopes
  • Grader and tractor work alignment
  • Setting blade angle of Circular Saws
  • Tool setting on Lathes
  • Setting work piece angle for milling
  • Setting blade angle of Miter Saws
  • Check drill press table setting, table saw, jointertable, band saw, jointer fence or band saw table



Special Features



  • Display remains upright to enableviewing at all angles
  • Large and Clear spirit level vial
  • Absolute and relative measurements conversion
  • Degree and Percentage of slope in conversion
  • Measuring range of 4 x 90° with ±0.1°repeatability
  • Large and clear LCD display with 0.1° resolution
  • Data hold function
  • Calibrates to any reference surface with calibratebutton
  • Three magnets on the base to secure attachment toany magenetic surface and hands free readings
  • Display enter state of absolute angle measurementeverytime you switch it on (even if batteries are changed)
  • Compact size allows you to take it anywhere
  • Precise, quick & highly accurate measurement
  • Comes complete with instruction manual and free batteries




Specifications



  • MeasuringRange: 4 x 90°
  • Resolution: 0.1°
  • Repeatability: ±0.1°
  • Working Temperature: 0 ~ 40°C
  • Relative humidity: 40 ~ 80%

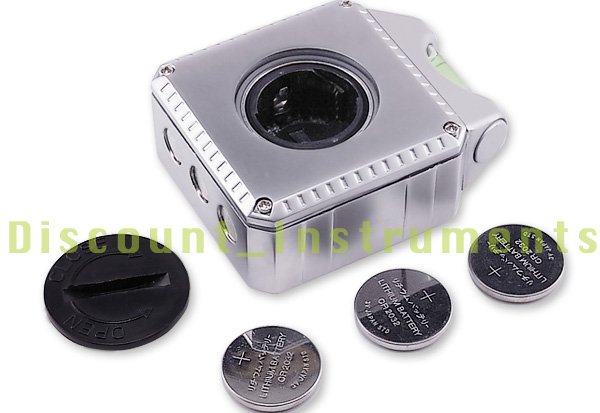

  • Power Supply: 3 x 3V CR2032 Battery (included)
  • Size: approx. 51 x 65 x 27mm (2.01' x 2.56' x1.06' inch)
  • Weight: 129 g (including batteries)



StandardSet Includes



  • 1 x Bevel Box with SpiritLevel
  • 3 x 3V CR2032 Batteries (installed)
  • 1 x Instruction Manual
  • Standard Factory Package
