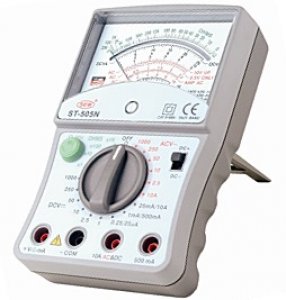

Sew ST-505N

FEATURES
● High quality Taut Band movement.
● Easy to read 3-color scale for mistake proof reading.
● Mirror scale: makes reading pointer easy.
● Safety features on all ranges.
● Safety features: safety fused and safety “OFF” position.
● dB measurement.
● Built-in stand makes reading and measuring easy.

  SPECIFICATIONS

DC Voltage
Ranges 0.25 / 1 / 2.5 / 10 / 50 / 250 / 1000V
Accuracy ±2% of full scale
Sensitivity 50k / V
AC Voltage
Ranges 2.5 / 10 / 50 / 250 / 1000V
Accuracy ±3% of full scale
Sensitivity 10k / V
Decibelmeter -20 to 62dB 0dB=1mW / 600
Direct Scale:-20 to +10dB
DC Current
Ranges 25uA/1mA/25mA/500mA,
10A(on separate input)
Accuracy ±2% of full scale
Sensitivity 250mV
AC Current
Ranges 10A
Accuracy ±3% of full scale
Resistance
Ranges R × 1           0.2 to 20k
R × 10             2 to 200k
R × 100         20 to 2M
R × 1000     200 to 20M
Accuracy ±3% of full scale
GENERAL
Dimensions 160(L) × 100(W) × 45(D)mm
Weight
(battery included)
Approx. 380g
Power source 1.5V (AA) × 2
Safety standard EN 61010-1 CAT III 600V
EN 610326-1
