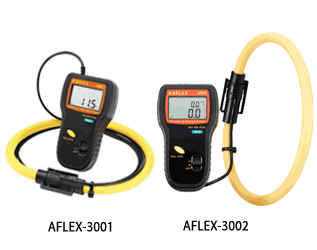

AFLEX-3001/3002 Flexible AC Current Clamp

Category: Flexible AC Current Clamp

AC Current (45~65Hz,True RMS)
Range
Range
Resolution
Accuracy of Readings
30 - 300 A
0.00 - 300A
0.1A
1% of range
300 - 999.9 A
100.0 - 999.9 A
0.1A
1% of range
1000 - 3000A
1000 - 3000 A
1A
1% of range

AC Voltage (AFLEX 3002 only, 45~65Hz, True RMS)
Range
Resolution
Accuracy of Readings
3 V - 600 V
0.1V
± 0.5% ± 5dgts

General Specification
Connector Diameter 23mm
Cable Diameter 14mm
Cable Length from Probe to Box 170mm
Conductor Size 170mm (approx.)
Battery Type 1.5V SUM-3*2
Power Consumption 10mA (approx.)
Auto - Power - Off 30 minutes
LCD update rate 2 times/sec
Operating Temperature -10 ℃ to 50 ℃
Operating Humidity <85% RH
Storage Temperature -20 ℃ to 60 ℃
Storage Humidity <75% RH
Dimension

130mm (L) x 80 mm (W) x 43mm (H) ;

5.1" (L) x 3.1"(W) x 1.7"(H)
Weight 450 g
Accessories Test lead x 1 pair (AFLEX 3002 only) ; Users manual x 1 ; Batteries 1.5V x 2
