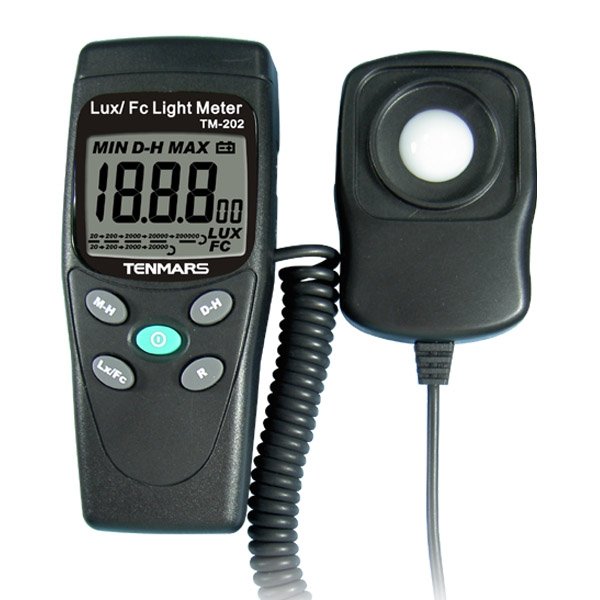

Tenmars TM-202 Light Meter

Category: Light Meter
Model No.: : TM-202
Product Description

- According to JISC1609:1993 and CNS 5119 general A class specifications.
- Spectral response close to CIE luminous spectral efficiency.
- Measuring intensities of illumination in unit of Lux or Foot-candle.
- Measuring lights source include all visible range.
- Length of wire for light sensor: approximately 1.5M.
- Cosine angular corrected
- 3½ digits LCD with maximum reading 2000.
- Overload indication.
- Low battery indication.

Warehouses, factories, office buildings, restaurants, schools, library, hospitals, photographic,video, parking garages, museums, art galleries, stadiums, building security.



Model

TM-201

TM-202

Data hold

V

V

DC analog output



V

Max/ Min /AVG hold



V

Max hold

V



Zero adjustment

V

V







          Sensor

Silicon photodiode and filter

Measuring range

20, 200, 2000, 20000, 200000 Lux

20,200, 2000, 20000 Foot-candle

Accuracy

+/- 3% (Calibrated to standard incandescent lamp 2856º K)

+/- 8% (other visible light source TM-201)

+/- 6% (other visible light source TM-202)

Angle deviation from

cosine characteristics

30º

+/- 2%

60º

+/- 6%

80º

+/- 25%



DIMENSION



Meter size (LxWxH)

130x55x38mm

Sensor size (LxWxH)

80x55x25mm

Weight (including battery)

250g
