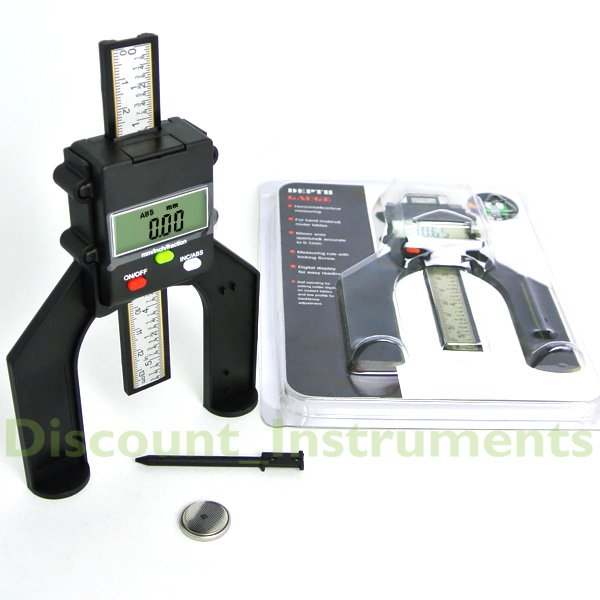

CIA026 MAGNETIC SELF STANDING DEPTH GAUGE DIGITAL LCD APERTURE 60MM HAND TABLE ROUTERS

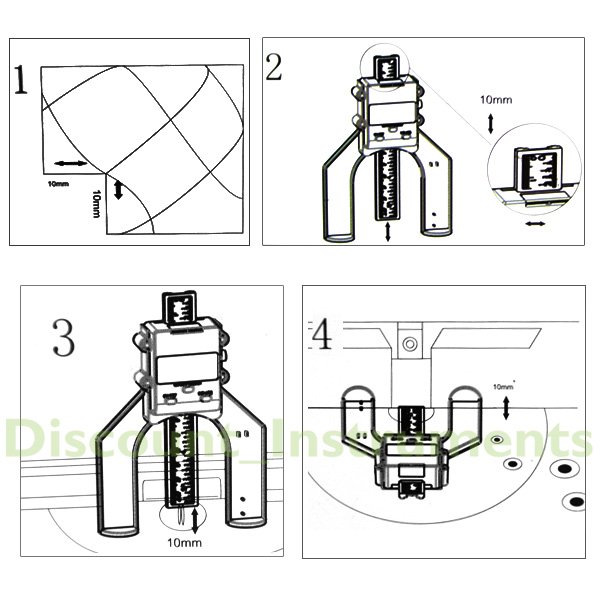

Digital depth gauge for router tables and saw benches. Horizontal and vertical measuring.

  • For hand routers, router tables and saw benches.

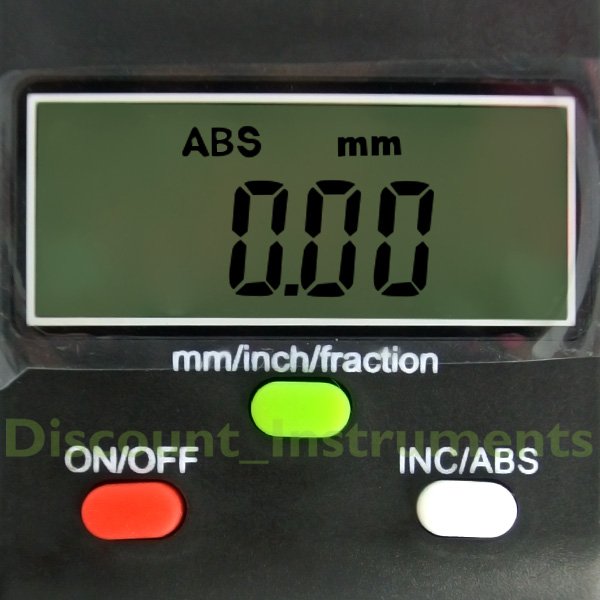

  • LCD readout for mm, imperial and fractions with auto shut off 5 mins.

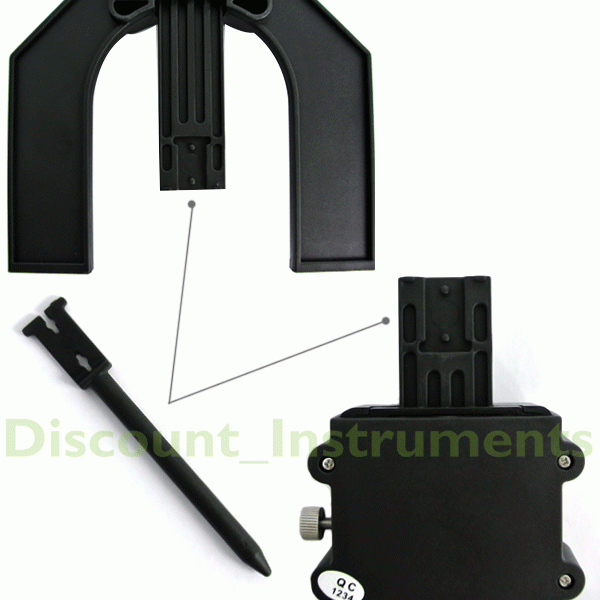

  • Removable pin to allow hole depths to be measured. Pin can be parked on arm. Hole depth 50.8mm (2 inch).

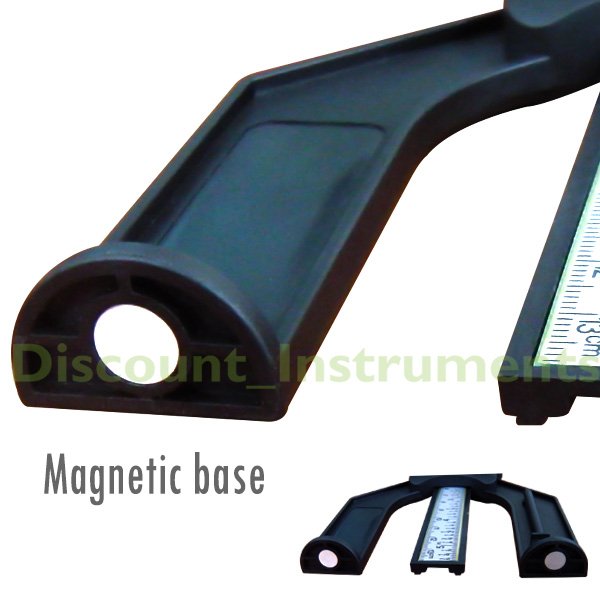

  • Self standing with magnetic feet and flat back.
  • Injection plastic moulding with plastic rule.
  • 60mm wide aperture.
Specifications
Measuring range 80 mm (3 1/8 inch)
Opening width 60 mm (2 3/8 inch)
Resolution 0.05 mm (0.002 inch)
Accuracy +/- 0.1 mm (0.004 inch)
Repeatability +/- 0.1 mm (0.004 inch)
Max measuring speed 1.5 m/s (60 in/s)
Weight 92g
