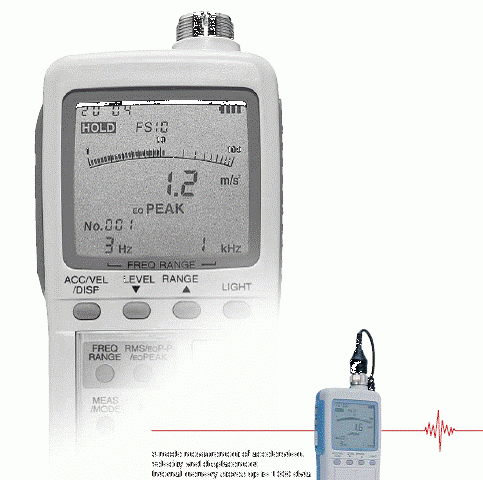

RIO0002 - Robust Vibration Meter with up to 100mm displacement (Made in Japan)
RIO0002 - Robust Vibration Meter with up to 100mm displacement (Made in Japan)
- For a wide range of industrial applications
- Particularly suited for routine maintenance and monitoring of rotational machinery
- Performance testing during machine design and development
- Acceleration (ACC), velocity (VEL), and displacement (DISP) can be easily measured
- Compact and light weight: only 320 grams including batteries
Specifications Accelerometer IPV-57 (supplied) Shear-type piezoelectric accelerometer (with integrated preamplifier) Measurement range (with PV-57)
- Acceleration (ACC): 0.02 to 200m/s2 (0.002-20G)
- EQ PEAK 1Hz to 5kHz Velocity (VEL): 0.3 to 1000mm/s RMS (3 Hz to 1kHz)
- 0.1 to 1000mm/s RMS (10 Hz to 1 kHz) Displacement (DISP): 0.02 to 100mm EQ PEAK 3Hz to 500Hz
- 0.001 to 100mm EQ PEAK 10Hz to 500 Hz
Indication parameters
- Acceleration: EQ, PEAK
- RMS Velocity: RMS, EQ PEAK
- Displacement: EQ PEAK, EQp-p, RMS
Frequency range
- Acceleration: 3 to 20kHz
- Velocity: 10 Hz to 1kHz
- Displacement: 3 Hz to 500 Hz
Display
- Backlit LCD Numerical Range: 3 digits
- 001 to 128 Bar graph display: Logarithmic scale
- 1 to 100% of full-scale
Output AC/DC output: Range full-scale 1V Interface Serial Interface, Printer Interface Power requirement DC: Four IEC R6 (size "AA") batteries Battery life: LR6 (alkaline) approx. 30 h / R6P (manganese) approx. 14h AC: AC adapter NC-34 series (Option) Dimensions and weight 168 (W) X 76 (H) X 35 (D) mm Approx. 320 g (incl. 4 pcs. of R6P batteries)
