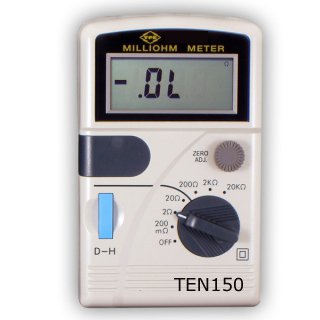

TEN150-DIGITAL BASIC HANDHELD MILLIOHM METER

3-1/2 digit LCD display with maximum reading of 2000.
Low battery indication.
Zero adjustment: External zero adjustment control.
Very low impedance measurement, four-wire type, one pair insulated clip.
Wide measurement range 1 milliohm to 20k Ohm in six switchable steps.
Fuse protection: 2 Amp/250Volt (5mm x 20mm), fast minimum interrupt ratings 1500A.
Function keys: D-H switch lockup readings for LCD display.
Dimensions: 160mm (L) x 100mm (W) x 52mm (D)
Weight: 700g approx.

Measuring Ranges

Accuracy

Resolution

Test Current

Open-Terminal
Voltage

200 milliohms

±(0.3% of rdg + 1dgt)

0.1 milliohm

100mA

1.0 Volt maximum

2 ohms

1 milliohm

10mA

20 ohms

10 milliohms

10mA

200 ohms

0.1 ohm

1mA

2k ohms

1 ohm

1mA

20 kohms

10 ohms

100µA
