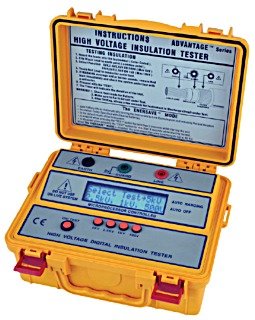

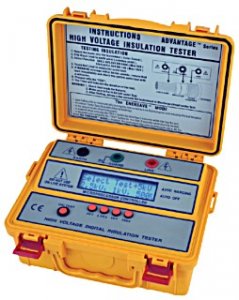

Sew 4103 IN (Ranges: 0.5kV, 1kV, 2.5kV, 5kV)

FEATURES
● Microprocessor-controlled.
● Four insulation test voltages.
● Insulation resistance; auto ranging on all ranges.
● Measures insulation time test.
● Bargraph indicates test voltage; rise and decay can be observed during tests.
● Visual and audible warning if external voltage is present.
● EnerSave™ feature to extend battery life.
● 2 Lines × 16 characters large LCD.
● Low battery consumption.
● Low battery indicator.
● Overload protection.
● Auto-off.
● Show test time duration (up to 99.9s) for easy comparison.
● EEPROM calibration.

  SPECIFICATIONS
Test voltage (DC V) 0.5kV   /   1kV   /   2.5kV   /     5kV
Measuring ranges
(Auto-Ranges)
0-25GΩ / 0-50GΩ / 0-125GΩ / 0-250GΩ
Accuracy ±5% rdg
Output power limit 1W
Sealed with gasket ˇ
Insulation resistance
between electrical
circuit and housing :
2000MΩ / 2000V
ˇ
Withstand voltage:
7000 Vac for one min.
between electrical
circuit and case
ˇ
Operation
temperature
-15°C to 55°C
Operation-humidity 80% Max. relative humidity
Dimensions 205(L) × 190(W) × 110(D)mm
Weight
(battery included)
Approx. 1670g
Power source 1.5V(AA) × 8
Safety standard EN 61010-1
EN 61326-1
