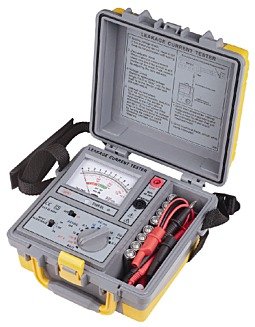

Sew 2108 EL

FEATURES
● High quality Taut Band movement.
● Four functions : DC current, AC current, AC+DC current, and ACV
   measurement.
● Three input resistance ranges: 1kΩ,1.5kΩ and 2kΩ.
● 200uA full scale value.
● ±2.5% full scale value accuracy.
● Built-in overload protection circuit.
● Robust, compact and easy to carry.

  SPECIFICATIONS


   Ranges    DC Current : 0.1-1-10mA
AC Current : 0.1-1-10mA
AC+DC current : 0.1-1-10mA
AC Voltage : 150-300V (50/60Hz)
Accuracy : ±2.5% of full scale
Input impedance Current Ranges :
1k
, 1.5k and 2k
Voltage Ranges :
150V/500k
300V/1M
Working frequency 20Hz ~5kHz
Overload protection Withstands 30mA AC for 10
minutes for each current
measuring range
Operating
temperature
0ºC ~ 40ºC
Operating humidity Max. 80% R.H.
Dimensions 210(L) × 210(W) × 100(D)mm
Weight
(battery included)
Approx. 1395g
Power source 1.5V (AA) × 8
Safety standard EN 61010-1 CAT III 600V
EN 61326-1
