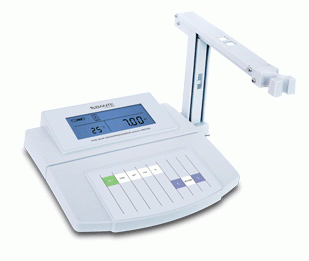

BANTE PHS-W series Basic pH/mV Meter

PHS-W series is an easy-use basic pH meter designed for daily

testing and controls are required.

Automatic Calibration:

The meters is capable of calibrating up to 2 points using USA or

NIST pH standard buffer. Press the CAL key to enter calibration

mode and immerse pH sensor into indicated calibration solutions,

press ENTER key and meter is automatically calibrated.



Auto-Buffer Recognition:

During the calibration, if the calibration solution does not match meter

indicated value, an ERROR indicator will be displayed.

After calibration, the percentage slope of the electrode is displayed

before the meter return to pH measurement mode. Per the electrode

slopes, you can decides whether to replace the sensor.

Automatic or Manual Temperature Compensation:

The meter provides manual or automatic temperature compensation

mode for optimum accuracy under variable temperature conditions.

The integrated plastic housing & keypad is sealed to protect against

accidental spills, The holder arm is rapidly switched to both sides &

swivels and articulates for convenient use and positioning.











Specifications:


     Model   PHS-25CW   PHS-3CW PHS-3BW
     pH Range   0.00~14.00pH 0.00~14.00pH 0.00~14.00pH
     pH Accuracy   ±0.05pH ±0.01pH ±0.01pH
     mV Range   -1999~1999mV -1999~1999mV -1999~1999mV
     mV Accuracy   ±10mV ±1mV ±1mV
     Temperature Range   --- --- 0~100°C
     Temperature Accuracy   --- --- ±1°C
     Temperature Compensation   0~100°C, Manual 0~100°C, Manual 0~100°C, Automatic or Manual
     Calibration Points   2 points
     Calibration Solutions

USA (pH4.01, 7.00, 10.01) or NIST (pH4.01, 6.86, 9.18)


     Power Requirements   DC9V, using AC adapters, 220VAC/50Hz
     Dimensions   210(L)×205(W)×65(H)mm
     Weight   1.7kg

  Order Code and Accessories:
     Order Code   Accessories


   PHS-25CW-UK



P11 Glass pH Electrode (Made in UK)

pH Buffer Pouches (pH4.01/7.00/10.01)

DC9V Power Adapters




   PHS-25CW-CN



E65-1-BNC Glass pH Electrode

pH Buffer Pouches (pH4.01/7.00/10.01)

DC9V Power Adapters






   PHS-3CW-UK



P11 Glass pH Electrode (Made in UK)

pH Buffer Pouches (pH4.01/7.00/10.01)

DC9V Power Adapters




   PHS-3CW-CN



E65-1-BNC Glass pH Electrode

pH Buffer Pouches (pH4.01/7.00/10.01)

DC9V Power Adapters




     PHS-3BW-UK

P11 Glass pH Electrode (Made in UK)

TP-100K Temperature Probe

pH Buffer Pouches (pH4.01/7.00/10.01)

DC9V Power Adapters


     PHS-3BW-CN

E65-1-BNC Glass pH Electrode

TP-100K Temperature Probe

pH Buffer Pouches (pH4.01/7.00/10.01)

DC9V Power Adapters
