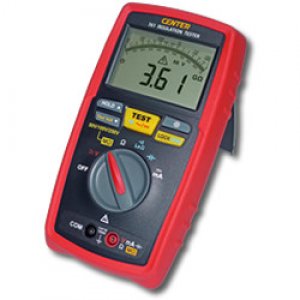

Center CENTER 361 - Insulation Tester (50/100/250V, 100G ohm)

Features:

  • 4 digits LCD display
  • Auto range for all function
  • Test hold function for easy operation
  • 50/100/250V for insulation measurement
  • Up to 100GΩ for insulation measurement
  • 0.01Ω for lowΩ range
  • Up to 20MΩ for resistance measurement
  • AC/DC voltage measurement
  • AC/DC current measurement
  • Capacitance measurement
  • Cable distance measurement

Specifications:


AC Voltage
Range Resolution
Accuracy
600V 0.1V 1.5%+3

DC Voltage
Range Resolution Accuracy
600V 0.1V 1.5%+3


Continuity
Range
Active Region
< 40Ω

Resistance (LoΩ)
Range
Resolution
Accuracy
40Ω
0.01Ω
1%+2 (<5Ω)
1% (<40Ω)

Resistance (Ω)
Range
Resolution
Accuracy
40Ω~20MΩ
0.1Ω~100KΩ
1%+2 (<2MΩ)
2%+2 (<20MΩ)

Insulation (MΩ)
Voltage
Range
Resolution
Accuracy
50V
50Ω~20GΩ
0.1KΩ~100MΩ
3%+3 (<10GΩ)
5%+3 (<20GΩ)
100V
100KΩ~40GΩ
3%+3 (<10GΩ)
5%+3 (<40GΩ)
250V
250KΩ~100GΩ
2%+3 (<10GΩ)
3%+3 (<50GΩ)
5%+3 (<100GΩ)


Capacitance/Distancce
Function
Range
Accuracy
0.1nF~40μF
3%+1
Distance
80KM 3%

AC Current (mA)
Range Resolution
Accuracy
45Hz~1KHz
400mA 0.1mA~1mA 3%+1

DC Current (mA)
Range Resolution
Accuracy
45Hz~1KHz
800mA 0.1mA~1mA 3%+1

Battery: 1.5V AA x 8
Dimensions: 222 x 122 x 68mm
Weight: 870g
*The specifications are subjects to change without prior notice.

Standard Accessories:

Test lead, large jaw alligator clips, battery, carrying case, instruction manual
