Measure and Monitor AC,DC,Power kwh with KKI clamp meters now!

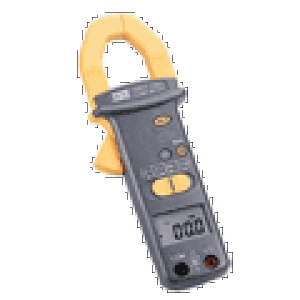

TES/PROVA Clamp meters

Category: Clamp meters

Taiwanese DC/AC Current Clamp Meter:

Version


Feature

CM-01
DC/AC Clamp Meter

http://tes.com.tw/pros-images/CM01.gif

  • High Resolution DC/AC 10mA
  • 23 mm Large Jaw Diameter
  • One Touch Zero for DCA adjustment

DCA 150-200A,ACA 150-200A,DCV 0-400V,ACV 0-400V,W 0-400 W,Hz 0-1000KHz

CM-02/04
Clamp Meter/Automotive Clamp

http://tes.com.tw/pros-images/CM02.gif

  • DC/AC 0.01A Resolution
  • AC/DC 0.01A~200A
  • 23mm Jaw Diameter
  • One Touch Zero
  • Temperature and Capacitance
  • Auto Range V、 W 、Hz、 ℃ 、 http://tes.com.tw/img-icon/2.jpg
  • 3 3/4 Digits (4000 Counts)
  • 0~9999 RPM(CM-04)

CM-03
Leakage Current Tester

http://tes.com.tw/pros-images/CM03.gif

  • 10 m A Ultra High Resolution
  • Large Conductor Diameter (30mm)
  • ACA 5 Ranges (40mA, 400mA, 4A, 40A, 100A)

CM-05
AC / DC Current Probe

http://tes.com.tw/pros-images/CM05.gif

  • Accurate and High Resolution
  • 23 mm Conductor Diameter
  • One Touch Zero

CM-07
TRMS AC / DC Clamp Meter

http://tes.com.tw/pros-images/CM07.gif

  • High Resolution DC 10mA, AC 1mA
  • True RMS
  • Non-contact Current Frequency
    Measurement

DCA 200-400A,ACA 200-400A,Hz 0-1000KHz

PROVA 11
AC / DC mA True RMS Clamp Meter

http://tes.com.tw/pros-images/11.gif

  • Super High Resolution DC 1mA,
    AC 0.1mA
  • One Touch Zero for DCA
  • True RMS

ACA 0-4000mA,ACA 0-30A

Range
Output
Accuracy
DCA 0-4000mA
1mA
+/- 1.5%rdg +/- 5dgts

DCA 0-30A
10mA
+/- 1.5%rdg +/- 3dgts

ACA 0-400mA
0.1mA
+/- 1.5%rdg +/- 5dgts
True RMS
ACA 0-4000mA
1mA
+/- 1.5%rdg +/- 8dgts
True RMS
ACA 0-30A
10mA
+/- 2.0%rdg +/- 5dgts
True RMS
DCV 0-400V
0.1V
+/- 1.0%rdg +/- 3dgts

ACV 0-400V
0.1V
+/- 2.0%rdg +/- 5dgts
True RMS

PROVA 15
AC / DC mA Current Probe

http://tes.com.tw/pros-images/15.gif

  • High Resolution DC 1mA, AC 0.1mA
  • Connect to an Oscilloscopes to observe Current Waveform
  • Connect to Chart Recorder / Datalogger / DMM to Record Current Data

PROVA 2000/2003
AC / DC Clamp Meter

http://tes.com.tw/pros-images/2000.gif

  • DC/AC 2000A
  • Cable f 55mm, Bus Bar 72mm(D) x 22mm(W)
  • True RMS (2000)
  • Average Sensing (2003)
  • DCA One Touch Zero
  • Auto Range A, V, W
  • Continuity
  • Max/Min/Hold

PROVA 2009
AC/DC True RMS WATT CLAMP

http://tes.com.tw/pros-images/2009.gif

  • AC+DC 1200KW
  • DC/AC 2000A & ANALOG OUTPUT
  • Cable F 55mm
  • True RMS
  • Temperature ( ℃ or ℉ )
  • 0.1 ℃ / ℉ Resolution

TES 3010/3012
Prof. Clamp Meter

http://tes.com.tw/pros-images/3010.gif

  • ACA: 20A, 200A, 600A
  • Continuity Buzzer
  • Unit & Sign Display

TES 3040
AC 1000A Clamp Meter

http://tes.com.tw/pros-images/3040.gif

  • 3-3/4 Digital LCD with bar-graph
  • Auto-power off with Data Hold and MAX/MIN mode
  • Zero Adjustment/Relative Reading

TES 3050
AC /DC 1000A Clamp Meter

http://tes.com.tw/pros-images/3050.gif

  • 3-3/4 Digital LCD with bar-graph
  • Auto-ranging off / Data Hold / Peak Hold / MAX/MIN mode
  • Zero Adjustment/Relative Reading

TES 3074
AC 1000A Clamp Meter

http://tes.com.tw/pros-images/3074.gif

  • Capacitance Measurement (400μF).
  • MAX / MIN / Data Hold.
  • Phase Rotation Indicator.
  • Pos Peak Hold & Neg Peak Hold.
  • 1000A AC & 600V AC.

TES 3079
HVAC Trms Clamp Meter (1000A)

http://tes.com.tw/pros-images/3079.gif

  • Check current draw in motors and compressors.
  • Use MAX/MIN/Recording in the temperature mode to assess efficiency.
  • Test run/start capacitors.
  • Confirm low voltage control signals.
  • Measure flame safeguard device current draw.

TES 3082
True RMS Clamp Meter

http://tes.com.tw/pros-images/3082.gif

  • Auto-Ranging Frequency measurements
  • Auto ZERO mode
  • Data Hold mode
  • PEAK Hold mode
  • True RMS Reading

TES 3091R
AC Clamp Meter

http://tes.com.tw/pros-images/3091.gif

  • 3-1/2 Digital LCD, 2000 count.
  • Pocket size.
  • MAX hold / Data hold function.

TES 3092
AC / DC 700A Clamp Meter

http://tes.com.tw/pros-images/3092.gif

  • 3-1/2 Digital LCD, 2000 count.
  • Pocket size.
  • MAX hold / Data hold function.
  • One touch DCA zero.

Power Clamp Meter

Version


Feature

PROVA-6600
3Phase Power Clamp

http://tes.com.tw/pros-images/6600.gif

  • AC/DC Auto Detection.
  • Auto range. AC+DC true power, and True RMS AC Voltage and Current
  • AC+DC 2000A, AC 600V, DC 800V
  • Memory of 4 records.
  • DCA/DCW Auto Zero when power clamp powering on.

PROVA-6601
3Phase Power Clamp

http://tes.com.tw/pros-images/6601.gif

  • AC+DC 2000A,600V Power Factor
  • AC+DC 1200KW(1 F )
    AC+DC 200KW(3 F )
  • AC/DC Auto Detection
  • Dual Display V+Hz,
    A+V,KW+PF,KVA+KVAR
  • PF( 3 F 3W , 3 F 4W 1 F 2W )

TES-3063/3064
Power AC/DC Clamp Meter with datalogging

http://tes.com.tw/pros-images/3063.gif

  • True power / Apparent Power / Power Factor
  • RS-232 Interface to talk with PC
  • Dual display KW + PF, KVA + PF, V+A
  • A + Hz, V + Hz
  • Datalogging Capacity (4000 Reading)
  • Peak/MAX/MIN function

http://tes.com.tw/image/new_0001.gifTES-3079K
3Phase Power Clamp

http://tes.com.tw/pros-images/3079K.gif

  • Check current draw in motors and compressors.
  • Use MAX/MIN/Recording in the temperature mode to assess efficiency.
  • Test run/start capacitors.
  • Confirm low voltage control signals.
  • Measure flame safeguard device current draw.
  • Confirm power sources.

TES-3095T
3095T TRMS KW Clamp Meter

http://tes.com.tw/pros-images/3095T.gif

  • 3-3/4 Digital LCD, 4000 count, Autoranging.
  • Trms KW, Current, Voltage measurement.
  • AC Current 0.1A to 700A.
  • Resistance and Continuity test.
  • Data hold & MAX function.
  • Pocket size.
  • Auto Power off.

TES-3096
DC/AC KW CLAMP METER

http://tes.com.tw/pros-images/3096.gif

  • Compact Size
  • Trms KW measurement
  • AC/DC Current Measurement (AC 600A/DC 600A)
  • 600V AC & 600V DC, Ohm/Continuity Beeper
  • 600 V AC & 600 V DC. Ohm/Continuity Beeper
  • One Touch DCA Zero
