The PX8000 Precision Power Scope was released as high frequency and transient power measurement of electric energy saving equipment. In order to support that measurement and evaluation, we released dedicated software 760881 PowerViewrPlus. This software enables measured waveform and numeric data transfer to a personal computer (PC) and realizes smooth calculation and analysis.
Main functions
- Remote control of PX8000 (1 set)
- Monitoring screen of PX8000
- Main waveform display, zoom waveform display, history memory display, X-Y waveform display, and measurement result display.
- Waveform parameter automatic measurement / computational measurement
- Conversion of multiple files (WPF→CSV)
- Saving data
- User defined computation
Max. 32 expressions for waveforms MATH1 to MATH32, 100M points/CH Arithmetic expressions can be created using the following combinations of waveform operations and constants. +, −, *, /, SHIFT, ABS, SQRT, LOG, EXP, NEG, SIN, COS, TAN, ATAN, PH, DIF, DDIF, INTG, IINTG, BIN, SQR, CUBE, F1, F2, FV, PWHH, PWHL, PWLH, PWLL, PWXX, DUTYH, DUTYL, FILT1, FILT2, HLBT, MEAN, LS-, PS-, PSD-, CS-, TF-, CH-, MAG, LOGMAG, PHASE, REAL, IMAG,TREND, TRENDM, TRENDD, TRENDF, _HH, _LL, _XX and ZC
Remote control of PX8000 (1 set)
|
You can operate your PX8000 through you PC on setting screen of the PowerViewerPlus. |
 |
Monitoring of PX8000 screen
|

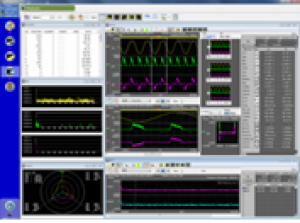

The PowerViewerPlus motors of a screen of your PX8000. The update cycle can be set. |
 |
Screen Details
|
Main waveform display, zoom waveform display, history memory display, X-Y waveform display, and measurement result display. |
 |
Saving data
|
You can save measurement data both waveform and numeric and the setting information into your PC at same time. |
 |
User defined computation (MATH)
|
On PX8000, there is maximum data point restriction up to 4M points in MATH function. However, the PowerViewerPlus does not have such limit and customers can analyze all data without stress. The MATH function is available up to 32 expressions. |
 |
| Saving Data Formats | |
| Setup parameters1 |
CFG format (.cfg) |
| Numeric data | CSV format (.csv) |
| Waveform data | CSV format (.csv), WPF format (.wpf) |
| Loading Data Formats | |
| Setup parameters |
CFG format (.cfg) |
| Numeric data2 | - |
| Waveform data2 | WPF format (.wpf) |
| Views |
| Numeric data |
| Bar graph3 |
| Vector3 |
| Waveform |
| FFT |
| PX configuration |
| All functions that are available as communication commands |
| System Requirements | ||
| Personal Computer | CPU | Dual core 64-bit processor or faster |
| Memory | 2 GB or more recommended | |
| Hard Disk | 10GB available free space or more | |
| OS | 64-bit version of Windows Vista, Windows 7, Windows 8, or Windows 8.1. (All English versions) |
|
|
Communications Port |
GP-IB: Products of NI (National Instruments) |
|
| Ethernet: 10BASE-T, 100BASE-TX or 1000BASE-T compatible Ethernet port | ||
| USB: A USB Rev. 1.1 or later USB port | ||
| Display, Printer and Mouse | Screen Resolution: 1366×768 pixels or higher Disk Drive: A drive that can read CD-Rs Applicable Operating Systems: Must be compaible with the operating systems listed above. |
|
| PX8000 |
PX8000 with power measurement element (at least 1 set) and AUX module. |
|
| Name | Description | |
|---|---|---|
| PowerViewerPlus 760881 (trial version) | PowerViewerPlus can control a PX8000 and acquire raw waveform data from the PX8000 via Ethernet, USB or GP-IB and calculate numeric, harmonic data and waveform parameters. | y-Link |
