Features:
-Voltage Rating:6V/12.5V/20V/40V/60V
-Output Power Rating: 1200W~1520W
-C.V / C.C Priority ; Particularly Suitable for the Batterey & LED
industry
-Adjustable Slew Rate
-Series and Parallel operation (2 Units in Series or 4 units in
parallel)
-High Efficiency and High Power Density
-19 Inch Rack Mount Size Design
-Stabdard Interface: LAN, RS-232 & RS-485, USB(Device / Host), Analog
Control Interface
-Optional Interface:GPIB, Analog Control Interface(Isolated Voltage
Control), Analog Control Interface(Isolated Current Control)
Description:

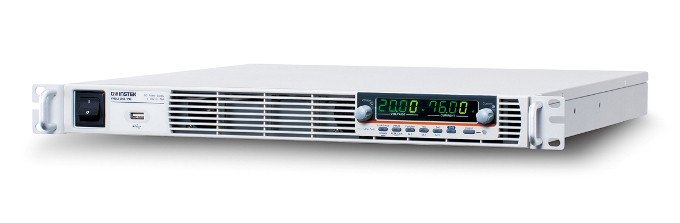

The PSU-Series is a single output programmable switching DC power supply covering a power range up to 1520W. This Series of products include five models with the combination from 6V to 60V rated voltages. As th ePSU-series can be connected in series for maximum 2 units or in parallel for maximum 4 units, capacity of connecting multiple PSU-Series units for higher voltage or higher current output provides a broad coverage of applications.
The OVP and OCP protections can prevent the DUT damage. Both OVP and OCP levels can be selected the range of 10% to 110%, with the default level set at 110%, of the rated voltage / current of the power supply. THe PSU-Series provides USB Host / Device , LAN, RS-232 with RS-485 and Analog Control Interfaces as standard. The LabView driver is available at the rear panel for external control of the power On/ Off and the external monitoring of the power output voltagre and current.
Specification:
Accessories:
Standard Accessories:
User Manual + Programming User Manual (CD) x 1 ; Quick Start Guide x 1 ; Output Terminal Cover x 1;
Analog Connector Plug Kit x 1; Output Terminal M8 Bolt Set x 1; Input Terminal Cover x 1; 1U Handle x 2
1U Bracket (LEFT) x 1; 1U Bracket (Right) x 1
Optional Accessories:
GTL-246 USB cable, USB 2.0 A-B type cable, 4P
GTL-248 GPIB Cable (2M)
GTL-251 GPIB-USB-HS (High Speed)
PSU-01B Bus Bar for 2 units in parallel operation
PSU-01C Cable for 2 units in parallel operation
PSU-02B Bus Bar for 3 units in parallel operation
PSU-02C Cable for 3 units in parallel operation
PSU-03B Bus Bar for 4 units in parallel operation
PSU-03C Cable for 4 units in parallel operation
PSU-232 RS232 Cable with DB9 connector kit
PSU-485 RS485 Cable with DB9 connector kit
GRM-001 Slide bracket 2pcs / set
PSU-GPIB PSU GPIB Interface Card (Factory Installed)
PSU-ISO-I Isolated Current Remote Control Card (Factory Installed)
PSU-ISO-V Isolated Voltage Remote Control Card (Factory Installed)
GPW-001 UL/CSA power cord, 3M
GPW-002 VDE power cord, 3M
GPW-003 PSE power cord,,3M
Ordering information:
PSU 6-200 (0~6V / 0~200A / 1200W) Single Channel Programmable Switching DC Power Supply
PSU 12.5-120 (0~12.5V / 0~120A / 1500W) Single Channel Programmable Switching DC Power Supply
PSU 20-76 (0~20V / 0~76A / 1520W) Single Channel Programmable Switching DC Power Supply
PSU 40-38 (0~40V / 0~38A / 1520W) Single Channel Programmable Switching DC Power Supply
PSU 60-25 (0~60V / 0~25A / 1500W) Single Channel Programmable Switching DC Power Supply
