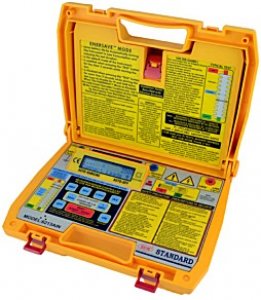

Sew 6213A IN (Ranges: 0.5kV to 10kV 0.5kV increment steps)

FEATURES
● Microprocessor-controlled.
● 2 ×16 characters; large intelligent LCD module.
● 20 Insulation test voltages 500V, 1kV, 1.5kV, 2kV, 2.5kV, 3kV,
    3.5kV, 4kV, 4.5kV, 5kV, 5.5kV, 6kV, 6.5kV, 7kV, 7.5kV, 8kV, 8.5kV,
    9kV, 9.5kV, 10kV.
● Ener-Save™ feature to extend battery life.
● Bar-graph indicates test voltage; rise and decay can be observed.
● Visual and audible warning if external voltage is present (>500Vac or Vdc.)
● Insulation resistance; auto-ranging on all ranges.
● Overload protection.
● Low battery indicator (read time battery voltage measurement).
● Measures insulation time duration of the test.
● Low battery consumption.
● Better than 10% accuracy on all ranges.
● Auto-off.
● Calculates Dielectric Absorption Ratio (DAR) automatically.
● Calculates Polarization Index (PI) automatically.

  SPECIFICATIONS

Test voltage From 500Vdc to 10kVdc
Adjustable in 500V steps
Preset buttons 1kV / 2.5kV / 5kV / 10kV
Measuring ranges 800kΩ-500GΩ (auto-ranging)
Accuracy ± 5% ± 2 digits
Output power limit 1W
Voltage regulation Selected voltage +20%-5% of
nominal value unless current limited.
Meaning that if output current is
too high, the voltage will be lowered
automatically.
Dimensions 330(L) × 260(W) × 160(D)mm
Weight
(battery included)
Approx. 3600g
Power source 1.5V “C”× 8 Alkaline batteries
Safety standard EN 61010-1 CAT III 300V
EN 61326-1
