| Specifications |
Description |
| Temperature measurement |
| Range (not calibrated below -10 °C) |
-20 °C to +600 °C
(-4 °F to +1112 °F) |
| Accuracy |
± 2 °C or 2 % (at 25 °C nominal, whichever is greater) |
| Temperature measurement: On-screen |
| Emissivity correction |
Yes |
Reflected background
temp. compensation |
Yes |
| Transmission Correction |
Yes |
| Imaging Performance |
| Image capture frequency |
9 Hz refresh rate or 60 Hz refresh rate depending upon model variation |
| Detector type |
320 X 240 Focal Plane Array, uncooled microbolometer |
| Thermal sensitivity (NETD) |
≤ 0.045 °C at 30 °C target temp. (45 mK) |
| Visual (visible light) camera |
Industrial performance 2.0 megapixel |
Infrared lens type:
Spatial resolution (IFOV) |
1.25 mRad |
| Image presentation |
| Palettes: |
Standard |
Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| Ultra Contrast |
Ironbow Ultra, Blue-Red Ultra, High Con-trast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra |
| Level and span |
Smooth auto-scaling and manual scaling of level and span |
| Fast auto toggle between manual and auto modes |
Yes |
Fast auto-rescale
(manual mode) |
Yes |
Minimum span
(manual mode) |
2.5 °C (4.5 °F) |
| Minimum span (Auto mode) |
5 °C (9 °F) |
| IR-Fusion information |
| Automatically aligned (parallax corrected) visual and IR blending |
Yes |
| Picture-In-Picture (PIP): Three levels of on-screen IR blending displayed in center of LCD |
| Full screen infrared: Three levels of on-screen IR blending displayed on LCD |
| Color alarms (temperature alarms) |
High-temperature alarm (user-selectable) |
| Voice annotation |
60 seconds maximum recording time per image; reviewable playback on imager |
| IR-Fusion information |
| Capabilities |

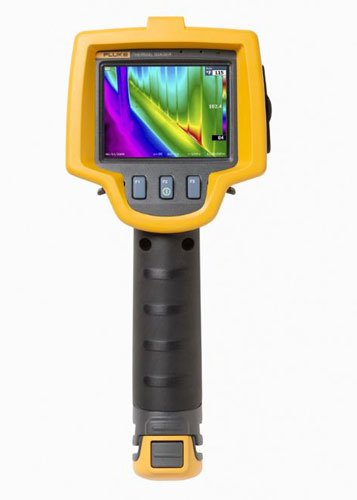

The Ti32 allows user to adjust palette, blending, level, span, IR-Fusion mode, emissivity, and reflected background temperature compensation, and transmission correction on a captured image before it is stored. |
Image capture, review,
save mechanism |
One-handed image capture, review, and save capability |
| Storage medium |
SD Memory Card (2 GB memory card will store at least 1200 fully radiometric (.is2) IR and linked visual images each with 60 seconds voice annotations, or 3000 basic bitmap (.bmp) images, or 3000 jpeg (.jpeg) images; transferrable to PC via included multi-format USB card reader |
| File formats |
Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2) |
| No analysis software required for non-radiometric (.bmp and .jpeg) files |
| Export file formats w/SmartView® software |
BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF |
| Memory review |
Thumbnail view navigation and review selection |
