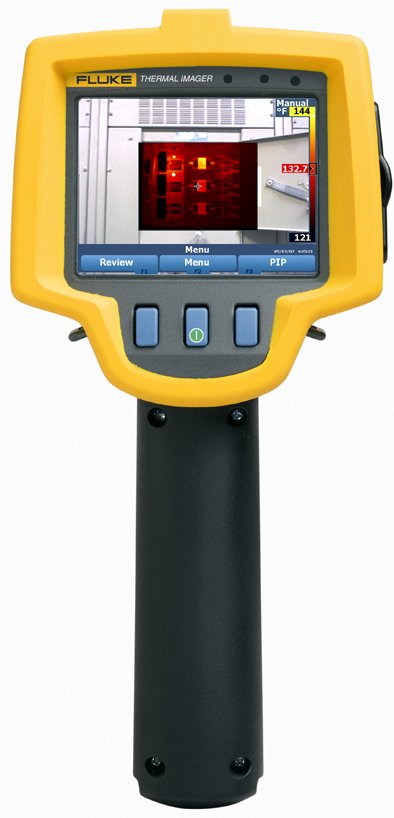

Fluke Ti25 Specifications |
Temperature |
measurement range (not calibrated below -10 °C) |
-20 °C to +350 °C (-4 °F to + 662 °F) (two ranges)
|
Accuracy |
± 2 °C or 2 % (whichever is greater) |
On-screen Emissivity Correction |
Yes |
Imaging performance |
Field of view |
< 0 °C (32 °F): ± (1.0 °C (± 2.0 °F) + 0.1°/1 °C or °F) |
Spatial resolution (IFOV) |
2.5 mRad |
Minimum focus distance |
Thermal lens: 15 cm (6 in) |
Visible (visual) light lens: 46 cm (18 in) |
Focus |
Manual |
Image frequency |
9 Hz refresh rate |
Detector type |
160 X 120 focal plane array, uncooled microbolometer |
Infrared lens type |
20 mm F = 0.8 lens |
Thermal sensitivity (NETD) |
≤ 0.1 °C at 30 °C (100 mK) |
Infrared spectral band |
7.5 μm to 14 μm |
Visual camera |
640 x 480 resolution |
Image presentation |
Palettes |
Ironbow, blue-red, high contrast, amber, hot metal, grey |
Level and span |
Smooth auto-scaling and manual scaling of level and span |
Minimum Span |
Manual |
2.5 °C (4.5 °F) |
Auto |
5 °C (9 °F) |
IR-Fusion® information |
Full infrared with MAX, MID, or MIN automatic blending; and picture-in-picture with MAX, MID, or MIN automatic blending (Visual and IR blending) |
Picture-In-Picture (PIP) |
Three levels of on-screen IR blending displayed in center 320 x 240 pixels |
Full screen (PIP off) |
Three levels of on-screen IR blending displayed in center 640 x 480 LCD |
Voice Annotation |
60 seconds maximum recording time per image
|
Image and data storage |
Measurement Range |
SD memory card (2 GB memory card will store at least 1200 fully radiometric (.is2) IR and linked visual images each with 60 seconds voice annotations or 3000 basic (.bmp) IR images)
|
File formats |
Non-radiometric (.bmp) or fully-radiometric (.is2)No analysis software required for non-radiometric (.bmp) files |
Export file formats w/SmartView™ software |
JPEG, BMP, GIF, PNG, TIFF, WMF, EXIF, and EMF |
General |
Display |
9.1 cm (3.6 in) diagonal landscape color VGA (640 x 480) LCD with backlight (selectable bright or auto) |
Power Battery: |
Internal rechargeable battery pack (included) |
Battery life: Three to four hours continuous use (assumes 50 % brightness of LCD) |
Battery charge time using ac adapter/charger and dc car charger: Two hours for full charge |
