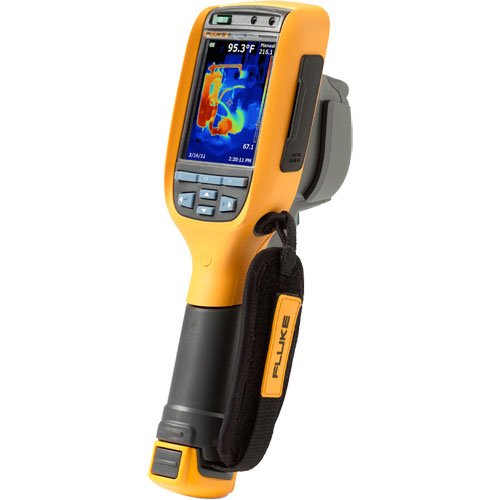

Fluke Ti100 160 x 120 Resolution, -20°C to 250°C (-4°F to 482°F) Thermal Imager for General Use

Category: Thermal Imagers

The Fluke Ti100 Thermal Imager is the lightest, Affordable, most rugged and easiest–to-use professional thermal imagers. Fluke thermal imagers can save you time and money by finding potential problems before they become costly failures. With the innovative features and functionality in the Fluke Ti100 Handheld Thermal imaging Unit, you can perform infrared inspections faster and more efficiently and thoroughly document problem areas for additional follow-up.

With it's low price and rugged construction, the Fluke Ti100 is a powerful and affordable Thermal Imager; a welcome addition to any tool kit.

Ideal for use with/for:

  • Industrial, mechanical, electromechanical and general building maintenance.
  • Process, refractory insulation, tank and vessel levels, steam systems and traps, pipes and valves, etc.
  • Electrical, unbalanced loads, overloaded systems, wiring problems or component failure, etc.
  • Building problems, defects and general maintenance
  • Energy audit, building inspection, and weatherization
  • Restoration, water damage, and roofing

Detailed specifications of the Fluke Ti100
IR resolution (FPA size) 160 x 120 FPA Uncooled Microbolometer
Spectral band 7.5 μm to 14 μm (long wave)
Capture or refresh rate 9Hz
NETD (Thermal sensitivity) ≤ 0.10°C at 30°C target temp (100 mK)
FOV (Field of view) 22.5 °H x 31 °V
IFOV (Spatial resolution) 3.39 mRad
Temperature measurement range
(not calibrated below -10°C)
-20°C to +250°C (-4°F to +482°F)
Temperature measurement accuracy ± 2°C or 2% (at 25°C nominal, whichever is greater)
IR-Fusion technology Focus-free 1.2m (4ft) and Beyond
Focus mechanism FULL IR
Standard palettes Blue-Red, Grayscale, Ironbow, Amber
User definable spot markers SmartView Only
Level and span control Manual and auto
Minimum span in auto mode 5°C
Minimum span in manual mode 2.5°C
Minimum IR focus distance 1.2m (4 ft)
Weight 0.726 kg (1.6 lb)
Size 11.2 x 3.4 x 5.3 in(28.4 x 8.6 x 13.5 cm)
LCD display 3.5 inch diagonal (portrait format)
Laser pointer Yes
Emissivity correction Yes
Background (reflected)
compensation
Yes
Memory review Thumbnail review
Battery (field-replaceable, rechargeable) Two
Battery life 4+ hours
Charging power supply 2 meter (6.5 feet)
Drop test 2 meter (6.5 feet)
Ingress protection (IP) rating (IEC 60529) IP 54
Recommended Calibration cycle Two-years
Memory storage 2 GB SD memory card
Direct download capability mini USB download direct to PC
Operating temperature range -10°C to +50°C (14°F to 122°F)
Storage temperature range -20°C to +50°C (-4°F to 122°F)
Operating humidity Operating and storage 10% to 95%, Non-condensing
Vibration and shock 2G, IEC 68-2-26 and 25G, IEC 68-2-29
Safety standards CSA (US and CAN): C22.2 No. 61010-1-04, UL: UL STD 61010-1 (2nd Edition), ISA: 82.02.01
C Tick IEC/EN 61326-1
EMI, RFI, EMC EN61326-1; FCC Part 5
