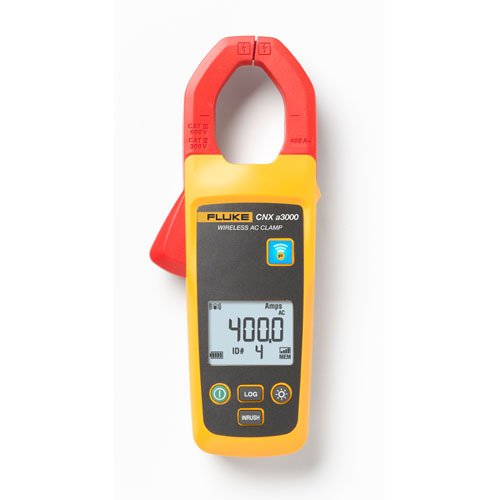

Connect the Fluke CNX A3000 AC Wireless Current Clamp Module to your test point, and view the results up to 20 meters away on the CNX Wireless Multimeter. The Fluke CNX a3000 will save your time, with less run-around collecting multiple measurements. Use multiple modules for measurements on three-phase systems; or use as a stand-alone measurement tool or combine with other Fluke CNX modules as a system for multiple measurements. From short distances, you can even view readings from modules through closed electrical panels. Plus no more writing down data as the Fluke FLK-CNX a3000 current module captures up to 65,000 sets of time stamped min/max/avg readings, using the optional PC adapter. Fluke CNX wireless test tools also offer increased safety by letting you view readings in a separate location from the test point. Now you can take readings on moving machinery, with only the measurement module in harm’s way.
Specifications | |
Range | 0.5 A to 400.0 A |
Resolution | 0.1 A |
Accuracy | 400.0 A: 2 % ± 5 digits (10 Hz to 100 Hz), 2.5 % ± 5 digits (100 Hz to 500 Hz) |
Inrush Max displayed reading | 999.9A |
Battery type | 2 AA, NEDA 15 A, IEC LR6 |
Battery life | 400 hours |
Memory Record | Up to 65,000 readings |
RF communications | 2.4 GHZ ISM Band |
RF communication range | 20 meters |
Operating temperature | -10 °C to +50 °C |
Storage temperature | -40 °C to +60 °C |
Temperature coefficient | Add 0.1 x (specified accuracy)/°C (< 18 °C or > 28 °C) |
Operating humidity | 90 % at 35 °C, 75 % at 40 °C, 45 % at 50 °C |
Safety compliance | EN/IEC 61010-1-030:2010 to 600 V Measurement Category (CAT) III EN/IEC 61010-2-030:2010 EN/IEC 61010-032:2002 |
Safety rating | CAT III 600 V |
Certifications | CSA, FCC T68-FWCS IC:6627A-FWCS |
Ingress Protection (IP) rating | IP30 |
Jaw opening | 34 mm (1.33 in) |
Size (HxWxD) | 8 in x 2.95 in x 1.4 in |
