Today’s high-bandwidth premises networks depend on a reliable fiber optic infrastructure. Proper installation and maintenance of fiber cabling is imperative for minimizing network downtime. Whether you require basic fiber verification capabilities, advanced troubleshooting and inspection, or documented loss and power measurements, Fluke Networks’ SimpliFiber® Pro Optical Power Meter and Fiber Test Kits are the best first-line fiber instruments to meet your needs.

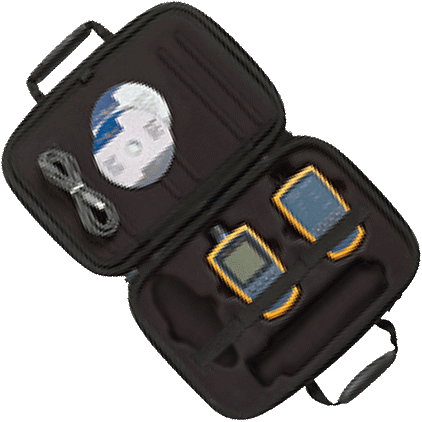

SimpliFiber® Pro Optical Power Meter and Fiber Test Kits include all the tools necessary to verify and troubleshoot optical fiber cabling systems, measure loss and power levels, and inspect and clean connector end-faces. Replacing the popular SimpliFiber series, these next generation optical loss test kits boast industry-leading functions such as dual-wavelength testing and automatic-wavelength detection, in addition to unique features such as CheckActive™, FindFiber™, and Min/Max. With such advanced, yet easy-to-use, capabilities that reduce test times, SimpliFiber Pro is simply the best first-line fiber test kit on the market.
Specifications | ||
Singlemode Optical Sources | ||
Emitter Type | FP Laser: dual 1310 nm/1550 nm | |
Central Wavelength | 1310 nm, 1550 nm | |
Wavelength Accuracy | 1310 nm: | +/- 20 nm |
1550 nm: | +/- 30 nm | |
Spectral Bandwidth (RMS) | 1310 nm: | 2 nm (maximum) |
1550 nm: | 3 nm (maximum) | |
Minimum Output Power | 1310/1550 nm: ≥ -7 dBm (typical) | |
Power Output Stability | ±0.25 dB over 8 hours | |
Auto Dual-Wavelength Switching | Yes. Can be enabled or disabled by user. | |
Optical Connector | Fixed SC | |
Launch Condition | 9/125 μm fiber | |
FindFiber Code Generation | Yes. Fixed at ID 2. | |
Modes | CW, 2 kHz modulated, Auto-wavelength | |
Power Requirement | 2 AA Alkaline batteries. | |
30 hrs (typical) battery life | ||
Automatic Power Off | 30 minutes (can be enabled or disabled by user) | |
Low Battery Warning | LED blinks. | |
Physical Dimensions | Size | 5.6 in x 3.2 in x 1.6 in (14.2 cm x 8.1 cm x 4.1cm) |
Weight | 9.8 oz (278 grams) | |
Optical Power Meter | ||
Power Measurement Accuracy | +/-0.25 dB | |
Optical Connector | Removable adapter; SC adapter standard; Optional adapters include LC, ST | |
Detector Type | InGaAs | |
Calibrated Wavelengths | 850, 1300, 1310, 1490, 1550, 1625 | |
Power Measurement Range | 850: | 10 to -52 dBm 1300, 1310, 1490, 1550 |
1625: | 10 to -60 dBm | |
Power Measurement Linearity | 850 nm: | +/- 0.2 dB; +/- 0.2 dB for power from 0 dBm to -45 dBm, +/- 0.25 dB for power < -45 dBm; 1300 nm, 1310 nm, 1490 nm, 1550 nm |
1625 nm: | +/- 0.1 dB; +/- 0.1 dB for power from 0 dBm to -55 dBm, +/- 0.2 dB for power > 0 dBm and < -55 dBm | |
Resolution | 0.01 dB | |
Battery life | >50 hours typical | |
Memory | 1000 loss or power measurements | |
Serial Communication Physical Interface | USB | |
General Specifications | ||
Temperature Range | Operating: | -10°C to 50°C |
Storage: | -20°C to 50°C | |
Humidity Range | Non-Condensing: | 95% (10°C to 35°C) |
Non-Condensing: | 75% (35°C to 40°C) | |
Uncontrolled: | <10°C | |
Certifications | CE, CSA, N10140, Class 1 laser-safe | |
Dimensions | Power Meter: | 6.4in x 3.2in x 1.5in (16.5cm x 8.0cm x 3.9cm) |
MM/SM sources: | 5.6in x 3.2in x 1.6in (14.2cm x 8.1cm x 4.1cm) | |
Weight | Power Meter: | 11.5 oz (325g) |
MM/SM sources: | 9.8 oz (278g) |
