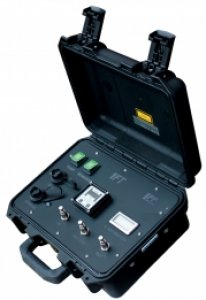

FIL110A-Portable fuel and oil cleanliness analyser
Portable diesel fuel and oil contamination monitor.
Fitted with laser particle counter. Results in
ISO4406, NAS and SAE formats.High viscosity pump
allowing oils up to 424cst.
Case: HPX®high performance resinconstruction with press & pull latchesand durable soft-grip handles.
Dimensions (closed): 360mm(W)x290mm(D)x170mm(H)
RunTime: Up to 6hrs dependent upon fluid viscosity
Modes of Operation: Tanksampling
Bottle sampling (minimum sample 100ml)High pressure feed samples options
Displayed Information: Fluid cleanliness to ISO4406(4u,6u,14u,21u),SAE4059,NAS1638
User programmable cleanliness level alarm
Information UpdateTime: 2min(or selectable throughsoftware)
Software: PC basedsoftware for trending,logging and analysis. Log to.txtfilesfor easy transfer to Excel
PC Connection: USB (Btype connection)
Viscosity range: 1–424cst
Fluid compatibility: Diesel & mineral oils
Fluid temperature: -10…60°C(oils)
Ambient Temperature: -40…85°C
Maximum Humidity: 97% relative humidity,non condensing
Supplied with: 1m suction tubefitted with 80 MESHs trainer(8mmOD)
1m discharge tube(8mmOD) Battery charger(UK3pinplug)PC software
Certification: PC9001factorycalibration certificate CE declaration
Verificationfrequency: 12months recommended
Product overview: The Particle Pal is a self-contained system, complete with integral pump and governed flow rate. Whether on-site or in the laboratory, the Particle Pal will provide instant cleanliness readings to allow you to fully understand the condition of your oils and fuels. Samples from oil and fuel tanks or sample bottles can be analysed quickly and accurately, thereby minimising the frequency of laboratory analysis. This pro- active maintenance approach is ideal for sites with multiple fuel tanks, thereby making the Particle Pal the ultimate survey and diagnostic unit. Powerful trending software will allow for data to be displayed in graphical format for real-time trend analysis. The Particle Pal will identify the cleanliness code of the fuel, which will alert to the need for corrective action. The Particle Pal is the most cost effective fuel cleanliness monitor on the market.
Fuel Monitoring: Modern fuels with ever increasing biofuel percentages, have created several challenges to industry in recent years. Fuel blends are highly hygroscopic which enables them to absorb greater amounts of moisture. This in turn leads to higher levels of microbiological activity which are seriously troublesome to fuel systems. The Particle Pal will allow you to quantify the level of solid contamination in your fuel and will alert you to the presence of high moisture levels and diesel bug.
Oil Testing: In Hydraulic and Lubrication systems, real time cleanliness data can prevent serious system failure and component damage. By trending oil cleanliness in real time, the necessary protection can be put in place to protect sensitive components. Samples can be taken directly from the reservoir of fluid power systems or from a oil sample taken from the system.
The Particle Pal will allow you to accurately measure the cleanliness of your stored fuels. By gaining an insight into oil and fuel cleanliness in real time, an informed decision can be made as to whether the oil and fuel needs filtration. Eliminating contamination will increase machine efficiency, reduce engine wear and reduce maintenance costs
