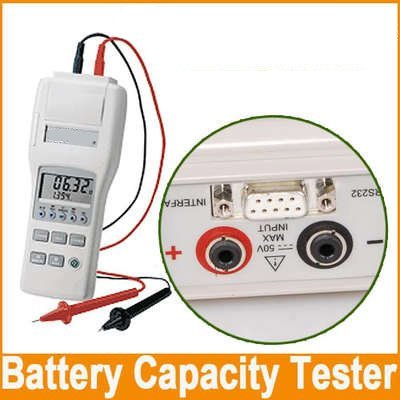

TES0020-32.v2 BATTERY CONDUCTANCE CAPACITY TESTER FOR TESTING BATTERY CONDITIONS

Category: Battery testers
  • Storage Battery Systems Battery Capacity Testers,
  • Check battery condition in seconds, with the battery in service!
  • Test Condition Without Shutting Down Battery.
  • Simultaneously Measure Battery Resistance, Voltage.
  • Comparator Function.
  • Rates Conditions as Pass, Warning, or Fail.
  • Memory and Read Function
  • Compact and Lightweight.
  • RS232 PC Interface

Battery Types Tested

Compact storage batteries, Alkali and lead-acid batteries..

Battery Capacity

0 to 500AH

Resistance

Ranges : 40mΩ, 400mΩ, 4Ω, 40Ω
Resolution : 10μΩ, 100μΩ, 1mΩ, 10mΩ
Accuracy : ±(1%reading + 8digits) on all ranges.

Measurement

Current : 25mA, 2.5mA, 250μA,25μA
Frequency : 1KHz
Accuracy : ±10%

Voltage

Measurement : 4V, 40V
Resolution : 1mV, 10mV
Accuracy : ±(0.1%rdg ±6digits)

Open Circuit Voltage

3.5Vpp max

Data Memory

500 data sets

Continuous Data Memory

9600 data sets (only use PC download)

Comparator

Setting : Resistance upper and lower limits and voltage
throughold limit.
Memory : 99 sets of values

Operating Environment

0 to 50 (32 to 122), 80%RH or less, non-condensing.

Maximum Input Voltage

50VDC

Power Supply or AC Adapter

Six size AAA 1.5V

Battery Life

7 hours

Weight

Approx. 500g including batteries

Dimensions

Approx. 250(L)×100(W)×45(H)mm

Accessories

Instruction manual, Batteries, Test probe, Software,
RS232 cable.

Optional Accessories

AC adaptor (Isolated output 9VDC)
