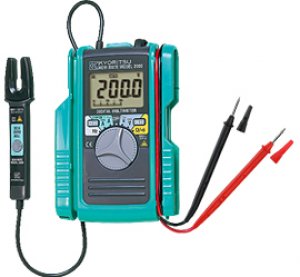

KEW MATE 2000/KEW MATE 2001/KEW MATE 2012R - Japan

Category: Kyoritsu(KEW)
  Capable of measuring AC and DC currents up to 60A with OPEN CLAMP SENSOR.
3400 counts with bargraph display.
Pocket size and heavy duty design.


DC V 340mV/3.4/34/340/600V (Input Impedance: 10MΩ)
±1.5%rdg±4dgt
AC V 3.4/34/340/600V (Input Impedance: 10MΩ)
±1.5%rdg±5dgt [50~400Hz]
DC A 60A ±2%rdg±5dgt
AC A 60A ±2%rdg±5dgt (50/60Hz)
Ω 340Ω/3.4/34/340kΩ/3.4/34MΩ
±1%rdg±3dgt (0~340kΩ)
±5%rdg±5dgt (3.4MΩ)
±15%rdg±5dgt (34MΩ)
Continuity buzzer Buzzer sounds below 30±10Ω
(Continuity buzzer works on 340Ω range only)
Frequency (AC A) 3.4/10kHz ±0.1%rdg±1dgt
(AC V) 3.4/34/300kHz ±0.1%rdg±1dgt
(Input sensitivity Current: more than 15A, Voltage: more than 30V)
Conductor size φ6mm max.
Withstand Voltage 3700V AC for 1 minute
Applicable standards IEC 61010-1 CAT.III 300V Pollution degree 2
IEC 61010-031, IEC 61010-2-032, IEC 61326-1
Power Source R03 (DC 1.5V) × 2
* Continuous measuring time: approx. 45 hours
(Auto power save: approx. 10 minutes)
Dimensions 128(L) × 87(W) × 24(D)mm
Weight 210g approx.
Accessories R03 (DC 1.5V) × 2, Instruction Manual
Optional 9107 (Carrying case [Soft])




Capable of measuring AC and DC currents up to 100A with OPEN CLAMP SENSOR.
3400 counts with bargraph display.
Pocket size and heavy duty design.
DC V 340mV/3.4/34/340/600V (Input Impedance: 10MΩ)
±1.5%rdg±4dgt
AC V 3.4/34/340/600V (Input Impedance: 10MΩ)
±1.5%rdg±5dgt [50~400Hz]
DC A 100A ±2%rdg±5dgt
AC A 100A ±2%rdg±5dgt (50/60Hz)
Ω 340Ω/3.4/34/340kΩ/3.4/34MΩ
±1%rdg±3dgt (0~340kΩ)
±5%rdg±5dgt (3.4MΩ)
±15%rdg±5dgt (34MΩ)
Continuity buzzer Buzzer sounds below 30±10Ω
(Continuity buzzer works on 340Ω range only)
Frequency (AC A) 3.4/10kHz ±0.1%rdg±1dgt
(AC V) 3.4/34/300kHz ±0.1%rdg±1dgt
(Input sensitivity Current: more than 25A, Voltage: more than 30V)
Conductor size φ10mm max.
Withstand Voltage 3700V AC for 1 minute
Applicable standards IEC 61010-1 CAT.III 300V Pollution degree 2
IEC 61010-031, IEC 61010-2-032, IEC 61326-1
Power Source R03 (DC 1.5V) × 2
* Continuous measuring time: approx. 45 hours
(Auto power save: approx. 10 minutes)
Dimensions 128(L) × 91(W) × 27(D)mm
Weight 220g approx.
Accessories R03 (DC 1.5V) × 2, Instruction Manual
Optional 9107 (Carrying case [Soft])
Innovative Multhimeters with current measurements up to 120A AC/DC
Unique Open Jaw technology for AC/DC current measurements
Very compact and as reliable as a tradictional full size multimeter
DC V 600.0mV/6.000/60.00/600.0V (Input impedance: approx. 10MΩ)
±1.0%rdg±3dgt
AC V 6.000/60.00/600.0V (Input impedance: approx.10MΩ)
±1.5%rdg±5dgt (45 ~ 400Hz)
DC A 60.00/120.0A
±2.0%rdg±8dgt (60A)
±2.0%rdg±5dgt (120A)
AC A 60.00/120.0A
±2.0%rdg±5dgt (45 ~ 65Hz)
Ω 600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ
±1.0%rdg±5dgt (600Ω/6/60/600kΩ)
±2.0%rdg±5dgt (6MΩ)
±3.0%rdg±5dgt (60MΩ)
Continuity buzzer Buzzer sounds below 35±25Ω
Diode test 2V±3.0%rdg±5dgtOpen-loop voltage: approx. 2.7V
Capacitance 400.0nF/4.000/40.00µF
±2.5%rdg±10dgt
Frequency
(AC A) 100/400Hz
±0.2%rdg±2dgt (100Hz)
±0.1%rdg±1dgt (400Hz)

(DC A) 100/1000Hz/10/100/300.0kHz
±0.2%rdg±2dgt (100Hz)
±0.1%rdg±1dgt (1000Hz/10/100/300.0kHz)

(Input sensitivity
Current: more than 6A
Voltage: more than 6V [~10kHz]/more than 20V [10k~300kHz])
Conductor size Ø12mm max.
Withstand voltage 3540V AC for 5 seconds
Applicable standards IEC 61010-1 CAT.III 300V, CAT.II 600V Pollution degree 2
IEC 61010-031, IEC 61010-2-032, IEC 61326
Power source
R03 (1.5V) × 2
* Continuous measuring time:
DCV: approx. 150hours, ACA: approx. 25hours
(Auto power save: approx. 15 minutes)
Dimensions 128 (L) × 92 (W) × 27 (D) mm
Weight 220g approx. (including batteries)
Accessories R03 (1.5V) × 2, Instruction manual
Optional 9107 (Carrying case [Soft])
